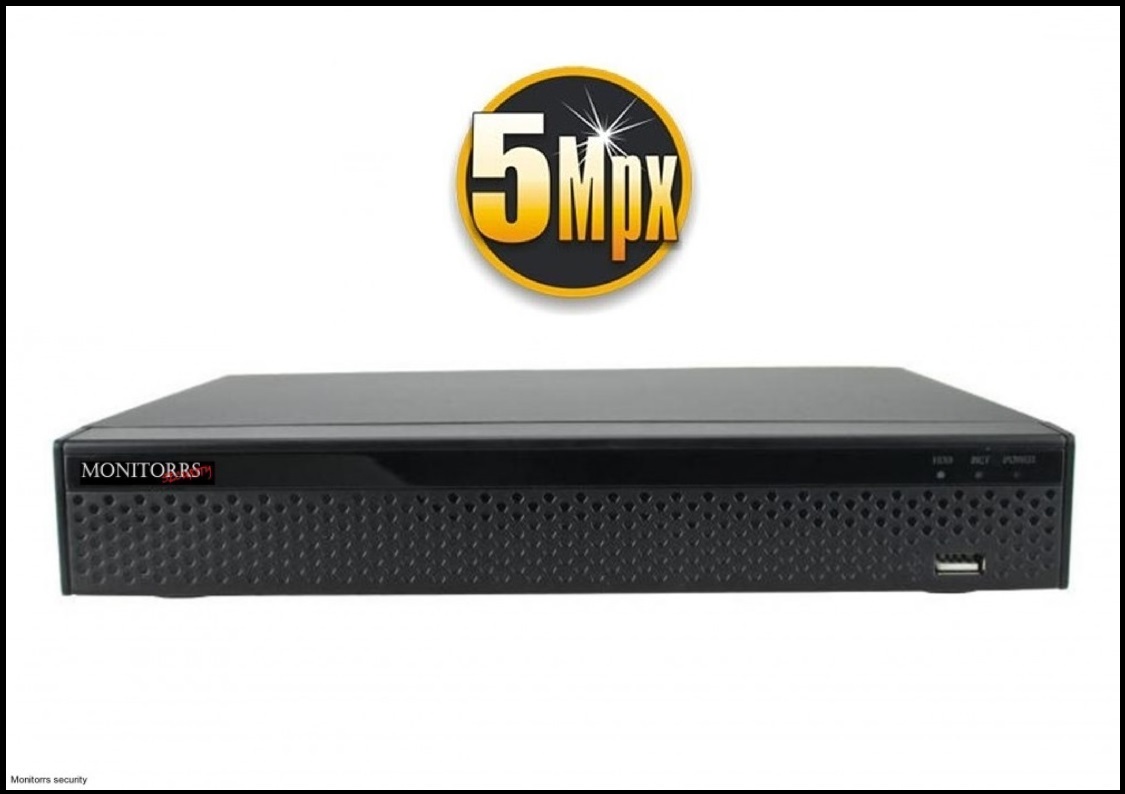

Monitorrs Security XVR záznamové zařízení 5Mpx 4 kanálové (6506)

Monitorrs Security

4 kanálové záznamové zařízení s možností vzdáleného přístupu přes mobil nebo PC s Funkcí P2P Možnost kombinovat s IP kamerami v poměru: Analog: 4*(TVI... celý popis
Dostupnost
Skladem
2 990 Kč
2 492 Kč
bez DPH
ks
Číslo produktu:6506
Výrobca:Monitorrs Security
Kompletní specifikace

4 kanálové záznamové zařízení s možností vzdáleného přístupu přes mobil nebo PC s Funkcí P2P

Možnost kombinovat s IP kamerami v poměru:

Analog: 4*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI/CVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Analog+Network:2*Analog+7*network(Max 8MP)
Network: 16*network(Max 8MP)(Total incoming bandwidth ≤80M)

Video výstup : 1 x HDMI 1 VGA, (1024×768, 1280×720, 1280×1024, 1920×1080),   1CVBS

HDMI - ano

Audio vstup 1 x cinch (RCA)

Audio výstup: 1 x cinch(RCA)

Nahrávání:

Video kompresia H264

Audio kompresia G711A

Nahrává v rozlišení:  720P(1280×720), 960H(P:960×576/N:960×480)

Rychlost záznamu 720P (1280 × 720 100fps / 120fps), 960H (P: 960 × 576 100fps / N: 960 × 480 120fps)

Internet:

1 x vstup RJ45 10M/100M

Internetové funkce : HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,DST

Harddisk 2 x SATA max. 8 TB

Další parametry:

2 x USB konektor 2.0

Napájení 12V 3A

Rozměry : 354mm×245mm×45mm

system
Main ProcessorHI3521A
Operating SystemEmbedded LINUX
Video
Input

Analog: 4*(TVI/AHD: 5M;  AHD/TVI/CVI: 4M;  AHD/TVI/CVI: 3M;

  AHD/TVI/CVI: 1080P/720P;  Analog: 960H)Analog+Network:2*

Analog+7*network(Max 8MP)
Network: 16*network(Max 8MP)

(Total incoming bandwidth ≤80M)

Input4CH BNC
Signal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output1 HDMI,1 VGA, 1CVBS
Audio
Input4Channel, RCA
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor InputNO
OutputNO
Motion Detection4 Channel(max 16 Channel in pure network mode)
Trigger EventsRecording, Alarm, Email, Screen tips, Buzzer
Email AlarmSend Image to The Designated E-mail
PTZ
InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGA

resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz,

 1280 × 720 /60Hz,1024 × 768 /60Hz

HDMIresolution:1920 × 1080P /60Hz,  1280 × 1024 /60Hz 1280 × 720 /60Hz,1024 × 768 /60Hz
Display Split16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking1 Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.264
Audio CompressionG711u
Resolution

5MP(2592×1944);4MP(2560×1440),3MP(2048×1536);

1080P(1920×1080);

720P(1280×720);960H(P:960×576/N:960×480)

Video Qualityworst/worse/ordinary/well/best
Record Rate

Analog:  PAL:5MP(2592×19444*12fps),4MP(2560×14404*15fps),

3MP(2048×15364*18fps);1080P(1920x10804*25fps),

720P(1280×720 4*25fps), 960H(960×576 4*25fps)
              NTSC:5MP(2592×1944 4*12fps),4MP(2560×1440 4*15fps),

3MP(2048×1536 4*18fps);1080P(1920x1080 4*30fps),

720P(1280×720 4*30fps), 960H(960×480 4*30fps)
Pure IP: PAL:4k@6×25fp,5MP@8×25fp,4MP@11x25fp,

3MP@11×25fp,1080P@16×25fp,960P@16×25fp,720P@16×25fp,

D1@16×25fp NTSC: 4k@6×30fp,5MP@8×30fp,4MP@11×30fp,

3MP@11×30fp,1080P@16×30fp, 960P@16×30fp,

 720P@16×30fp, D1@16×30fp

Record ModeManualimerotion Detectionlarm
Playback & Backup
Decode Capability4CH 1080P@30fps
Sync Playback

Pure Analog: 4CH 5M@12fps, 4CH 4M@15fps, 4CH 3M@18fps,

4CH 1080p@30fps
Mix Mode:  2CH 1080P@30fps+1CH 1080N@12fps
Pure IPC:  1CH 4K@30fps, 1CH 5MP@30fps2CH 4MP@30fps,

 3CH 3M@30fps,

4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Remote Playback4 Channel / 1 Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast play, Rewind
Smart Phone Playback4 Channel
Backup ModeUSB Device/Network
Network
Interface1 RJ45 10M/100 Adaptive Ethernet Interface
Network Functions

HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE,

DDNS, NTP, FTP, UPNP

DDNS

Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE,

 SKDDNS, SMART-EYES

Web BrowserIE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
Extra StreamCIF(1~25fps)
Smart PhoneiPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type1 SATA Interface
Capacity2.5"/3.5" SATA, Up to 6TB
General
Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew,

 Arabic, Bulgarian, FarisaGerman, French, Portuguese,

 Turkic, Spanish, Italian, Hungarian, Romanian,

korean, Dutch, Greek

UTC ControlYES
USB Interface2 USB 2.0 Interfaces
Power consumptionDC 12V  ≤6W (Without Hard Disk)
Working Environment-10~55/10~90%
Dimension (W×D×H)220*219*50(mm)
Weight2.0kg (Without HDD)



ModelAHD-T2004U
System
Main ProcessorHI3520D
Operating SystemEmbedded LINUX
Video
InputAHD:4*1080P/720P; Analog:4*960H/D1; IPC:8*1080P/960P/720P
Output1HDMI,1 VGA, 1CVBS
Audio
Input4Channel, RCA
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor InputNO
OutputNO
Motion Detection4 Channel
Trigger EventsRecording, PTZ, Tour, Alarm, Email, Screen tips
Email AlarmSend Pieces to The Designated E-mail
PTZ
InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGAResolution: 1024×768, 1280×720, 1280×1024, 1920×1080
HDMI1920x1080
Display Split9 Channel/4 Channel / 1Channel
Privacy Masking1Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.264
Audio CompressionG711A
Resolution1080P(1920x1080),720P(1280×720), 960H(P:960×576/N:960×480)
Video Qualityworst/worse/ordinary/well/best
Record Ratehalf1080P(960x1080 100fps/120fps),720P(1280×720 100fps/120fps), 960H(P:960×576 100fps/N:960×480 120fps)
Record ModeManualimerotion Detectionlarm
Playback & Backup
Sync Playback1Channel
Remote Playback1Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast play, Slow play
Smart Phone Playback1 Channel
Backup ModeUSBDevice/Network
Network
Interface1RJ4510M/100MAdaptiveEthernetInterface
Network FunctionsHTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,FTP,UPNP
DDNSDyndns,changeip,no-ip,Oray,A-PRESS,MYQSEE,SKDDNS,SMART-EYES
Web BrowserIE8-11,Googel,Firefox
CMS SoftwareSupport Windows XP /Windows Vista/Windows 7/Windows 8
Extra StreamD1/CIF(1~25fps)
Smart PhoneiPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type2SATAInterface
Capacity2.5"/3.5" SATA, Up to 8TB
General
LanguageSupport 20 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew, Arabic,
Bulgarian, Persian, Germany, France, Portugal, Turkey, Spain, Italy, Hungary, Romania, Korean,Nederland)
USB Interface2USB2.0Interfaces
Power consumptionDC12V≤6W
Working Environment-10~55/10~90%
Dimension (W×D×H)354*280*50(mm)
Weight4.5kg (Without HDD)
